Product Dimensions 12.31"h x 34.38"w x 17.5"d

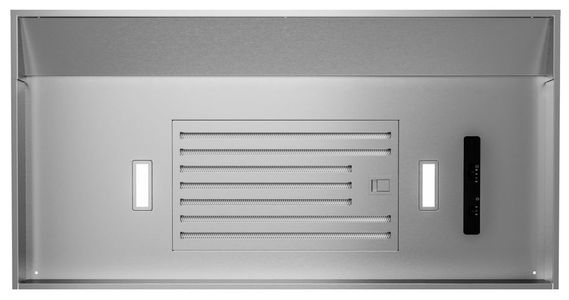

The Vortex one-piece liner leads the way with the industry’s only adjustable-depth installation. Vortex is designed to extend up to 3 inches towards the front of the custom hood canopy so you can install it in spaces up to 20-1/2? deep. Add to this its category-leading 390 CFM, LumiLight LED Lighting, optional recirculating kit and its 36-inch mounting height maximum — Vortex stands tall among the rest.Read More
Hybrid baffle filter
Powerful 390 CFM blower
3 speed mechanical slide controls
Adjustable depth
LumiLight LED lighting
Optional ductless recirculating kit
General Specs | |
| Width (in.) | 34.38 |
| Height (in.) | 12.31 |
| Duct Size (in.) | 6" Round |
| Depth (in.) | 17.5 |
| Collection | Vortex |
| Color | Stainless Steel |
| Shipping Depth (cm) | 57.66 |
| Shipping Height (cm) | 48.51 |
| Shipping Width (cm) | 100.08 |
| Weight Kilogram | 17.92 |
| Appliance Fit Width (cm.) | 87 |
| Manufacturer Warranty | 1 Year Labor / 3 Year Parts |
| Color Finish Name | Stainless Steel |
| Range Hood Type | Insert |
| ADA Compliant | No |
| ENERGY STAR Certified | No |
| Appliance Fit Width (in.) | 36 |
| Product Weight (lbs.) | 34.6 |
| Smart Compatible | No |
| Maximum CFM | 390 |
| Bulb Type | LED |
| Grease Filter Type | Baffle |
| Sones Rating | 1.4 - 5 |
| Fan Speed Options | 3 |
| Vent Location | Top |
| Height Above Cooktop | 24 - 34 |
| Shipping Depth (in.) | 22.7 |
| Shipping Width (in.) | 39.4 |
| Shipping Height (in.) | 19.1 |
| Width (cm) | 87.31 |
| Height (cm.) | 31.27 |
| Depth (cm.) | 44.45 |
| Product Weight (kg) | 15.69 |
| Height Above Cooktop Centimeter | 66.04 - 86.36 |
| Voltage | 120 |
| Amp | 4 |
| Frequency | 60 |
| Range Hood Features | Ductless Capable |
| Noise Level (Sones) | Standard - (High) |
| Ventilation Type | Convertible (Both) |
Additional Information | |
| Adjustable Depth | 17.5" - 20.5" (44.45 cm - 52.07 cm) |
