Product Dimensions 1.5"h x 35.38"w x 10.75"d

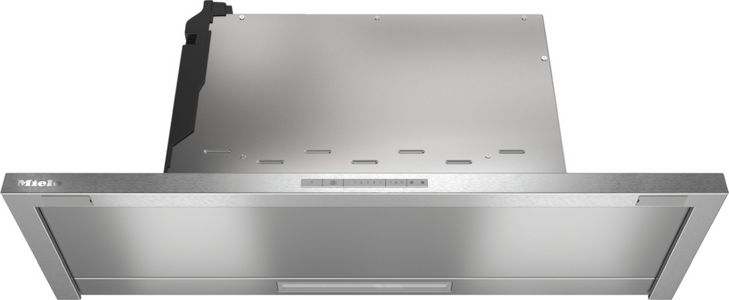

Miele Under Cabinet Range Hoods are designed to effectively remove smoke, odors, and grease from your kitchen while saving space. With powerful extraction performance, adjustable fan speeds, and convenient controls, Miele under cabinet range hoods provide efficient ventilation without compromising on style. Their sleek and compact design seamlessly integrates into your kitchen, offering both functionality and elegance.Read More
Thanks to the automatic Con@ctivity function, the ventilation hood can communicate with the cooktop below: the settings selected on the cooktop are transmitted to the ventilation hood controls. Your Miele Ventilation Hood uses this data to automatically select the correct fan setting, ensuring the optimum room climate at all times. Communication is established between the ventilation hood and cooktop via Wi-Fi.
The automatic fan run-on ensures the full extraction of steam and odours that are still lingering, even after cooking. The ventilation hood can be set to switch off automatically after 5 or 15 minutes.
If the grease or active charcoal filter of your Miele ventilation hood is saturated, the red LED indicator will light up. Your filter should then be cleaned or replaced as soon as possible. You can manually adjust the factory-set service life of the filters: The grease filter saturation indicator can be programmed for 20, 30, 40 or 50 hours, the indicator for active charcoal filter replacement for 120, 180 or 240 hours.
To remove odours with a Miele Recirculation Ventilation Hood, you can use active charcoal filters. This disposable filter has to be replaced on a regular basis.
Miele Ventilation Hoods are equipped with a 10-ply stainless-steel grease filter and ensure that a large proportion of the grease is separated. When it is removed, the integrated fall protection system means that it can be handled safely and protects your cooktop from damage. The top layer and filter frame are made of high-quality stainless steel so that they do not discolour when washed in the dishwasher and continue to look good long term.
Located behind the grease filters is the Miele CleanCover: Instead of sharp metal edges and electrical components you will find only a sealed, smooth surface. It is particularly easy to clean and protects you from coming in contact with cables and motor components. Miele attention to detail - for your convenience and safety.
Longlife filters can be refreshed/reactivated in any oven using Convection Bake at 200°C (400°F) for 60 minutes. This heat releases odours from the active charcoal molecules. We recommend completing a refresh semi-annually and fully replace the filter after 3 years.
The ventilation hood will switch off automatically after 10 hours. This ensures maximum safety even in case of operating errors.
Additional Features
Unique user convenience – Con@ctivity
LED strip for uniform lighting
Efficient filtration - 10-ply stainless-steel grease filter
Recirculation mode – Active AirClean or Longlife AirClean filter
General Specs | |
| Width (in.) | 35.38 |
| Height (in.) | 1.5 |
| Depth (in.) | 10.75 |
| Color | Stainless Steel |
| MPN | 11878530 |
| Appliance Fit Width (cm.) | 90 |
| Manufacturer Warranty | 1 Year Parts & Labor |
| Color Finish Name | Stainless Steel |
| Range Hood Type | Insert |
| ADA Compliant | No |
| ENERGY STAR Certified | No |
| Appliance Fit Width (in.) | 36 |
| Product Weight (lbs.) | 36 |
| Bulb Type | LED |
| Vent Location | Top |
| Height Above Cooktop | 24.13 - 26 |
| Width (cm) | 89.87 |
| Height (cm.) | 3.81 |
| Depth (cm.) | 27.31 |
| Product Weight (kg) | 16.33 |
| Height Above Cooktop Centimeter | 61.29 - 66.04 |
| Voltage | 120 |
| Amp | 15 |
| Frequency | 60 |
| Range Hood Features | Ductless Capable, Automatic Shut Off, Wi-Fi Capable, Smart Compatible, Removable Grease Filter |
| Ventilation Type | Convertible (Both) |
Construction Type | |
| Slimline ventilation hood | Yes |
Operating Modes | |
| Recirculation conversion kit (order separately) | DUU 151 |
| Type of air guide | Convertible |
| Active charcoal filter (order separately) | DKFS 31-P |
User Convenience | |
| Touch controls on glass | Yes |
| Electronic controls | Yes |
| Programmable booster level switch-off | Yes |
| Run-on time 5 / 15 min | Yes |
| Programmable grease/active charcoal filter saturation indicator | Yes |
| Networking with Miele@home | Yes |
| Con@ctivity 3.0 automatic function (Wi-Fi) | Yes |
Filter System | |
| Number of dishwasher-safe stainless steel grease filters (10-ply) | 1 |
Lighting | |
| Number x W | Yes |
| Light intensity in Lx | Yes |
| Colour temperature in K | Yes |
| Dimmer function | Yes |
Fan | |
| Dual-action fan | Yes |
| AC motor | Yes |
Safety | |
| Safety shut-off | Yes |
Technical Data | |
| Length of power cable in m | 2 (0.8) |
| Standard plug fitted | Rwa |
| Number of phases | 1 |
Accessories Supplied | |
| Non-return flap | Yes |
