Product Dimensions 18"h x 30"w x 24.13"d
The specially designed Range hood LED lighting emits a natural light to show the true colour and consistency of food. LEDs also conserve energy and are long lasting. The ClearView LED Range hood lighting system has been tested for the equivalent of 20 years' use.Read More

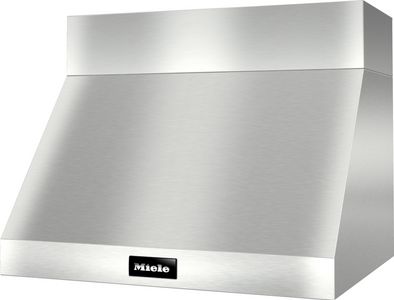

Professional design - stainless steel hood, 30 (760) in (mm) wide
Perfect illumination - LED ClearView lighting
Dishwasher-proof - 2 high-quality stainless steel grease filters
Safe and easy to clean - Miele CleanCover
The temperature sensor is a safety device that constantly monitors the temperature when the hood fan is switched on. If a certain temperature is exceeded the hood fan automatically switches to the intensive setting. This avoids unnecessary energy consumption. The temperature sensor provides added peace of mind.
Operating the fan power and LED lighting on the hood fan is intuitive and effortless with rotary controls.
Located behind the grease filters is the Miele CleanCover: Instead of sharp metal edges and electrical components you will find only a sealed, smooth surface. It is particularly easy to clean and protects you from coming in contact with cables and motor components. Miele attention to detail - for your convenience and safety.
General Specs | |
| Width (in.) | 30 |
| Height (in.) | 18 |
| Duct Size (in.) | 9.88" |
| Depth (in.) | 24.13 |
| Color | Stainless Steel |
| MPN | 11898130 |
| Appliance Fit Width (cm.) | 77 |
| Color/Finish Name | Stainless Steel |
| Manufacturer Warranty | 1 Year Parts & Labor |
| Range Hood Type | Wall Mounted |
| ADA Compliant | No |
| ENERGY STAR Certified | No |
| Outdoor Approved | No |
| Appliance Fit Width (in.) | 30 |
| Product Weight (lbs.) | 60 |
| Smart Compatible | No |
| Bulb Type | LED |
| Grease Filter Type | Stainless Steel |
| Filter Indicator Light | No |
| Vent Location | Top |
| Ventilation Direction | Vertical |
| Width (cm) | 76.2 |
| Height (cm.) | 45.72 |
| Depth (cm.) | 61.29 |
| Product Weight (kg) | 27.22 |
| Voltage | 120 |
| Amp | 15 |
| Range Hood Features | Light |
| Ventilation Type | Ducted |
Accessories Required | |
| Fan | Yes |
| Chimney cover | Yes |
Operating Modes | |
| External operation | Yes |
| Type of air guide | Can be retrofitted |
User Convenience | |
| Rotary knob | Yes |
| Power levels (excluding booster level) | 3 |
| Temperature sensor | Yes |
Cleaning Convenience | |
| Easy-to-clean CleanCover hood liner | Yes |
| Dishwasher-safe grease collection channel | Yes |
Filter System | |
| Number of dishwasher-safe stainless-steel filters | 2 |
Lighting | |
| LED (Number x W) | 2 x 3 W |
Fan Options (Purchased Separately) | |
| DRIB XL internal, fan power in m3/h | 1189 |
| DREB XL external, fan power in m3/h | 1189 |
Technical Data | |
| Length of power cable in m | 2 (0.8) |
| Total rated load in kW | 0.81 |
Accessories Supplied | |
| Non-return flap | Yes |
