Product Dimensions 8"h x 47.88"w x 27.88"d

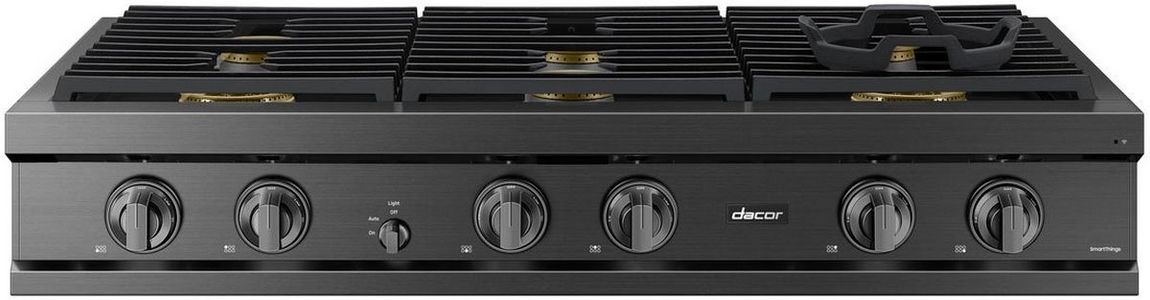

Dacor rangetops offer refined looks and a visionary performance that come together perfectly with a lineup of features that ignite the imagination – turn up the heat on what’s possible.Read More
Dacor 10-15-20 Promo
Save up to 20% on eligible Dacor purchases. Ends 2025-12-31
Shop eligible itemsBuy $10,000
Save 10%
Buy $15,000
Save 15%
Buy $20,000
Save 20%
Cook delicious meals with ease and precision. Quickly boil water with 22,000 BTU of power or maintain a gentle simmer at 750 BTU with the all-brass, Dual Valve, Dual Ring Burner.
Multiple pots and pans can be used simultaneously and easily slid across the spacious cooking surface of 15-inch-wide grates.
Elegance meets function with a Dacor rangetop, and no detail is overlooked. Glowing Illumina™ knobs shine and add a warm, welcoming glow to your kitchen.
Bluetooth and ConnectOn auto-responsive technology turns on the ventilation in conjunction with the cooktop. And with the use of a temperature sensor, ramps up the ventilation speed as necessary.
Dacor exclusive Graphite and Silver Stainless Steel finishes bring beauty and style to match any kitchen design or concept.
The SmartThings connected platform provides an exceptional foundation for an ever-growing ecosystem of smart connectivity. Preheat and check the oven temperature, the cooking status and the remaining time – all from the comfort of your smartphone.
General Specs | |
| Product Weight (lbs.) | 63 |
| Color | Graphite |
| Outdoor Approved | No |
| Appliance Fit Width (cm.) | 122 |
| Fuel Type | Natural Gas |
| Depth (in.) | 27.88 |
| Height (in.) | 8 |
| Width (in.) | 47.88 |
| Manufacturer Warranty | 2 Year |
| Appliance Fit Width (in.) | 48 |
| Color Finish Name | Graphite Stainless |
| ADA Compliant | No |
| ENERGY STAR Certified | No |
| Smart Compatible | Yes |
| Burner Type | Open |
| Number of Elements/Burners | 6 |
| Ignition Type | Spark |
| Cut Out Depth | 24 |
| Cut Out Width | 48 |
| Cut Out Height | 7.75 |
| Width (cm) | 121.62 |
| Height (cm.) | 20.32 |
| Depth (cm.) | 70.82 |
| Cut Out Depth Centimeter | 60.96 |
| Voltage | 120 |
| Frequency | 60 |
| Amp | 20 |
| Product Weight (kg) | 28.58 |
| Cut Out Width Centimeter | 121.92 |
| Cut Out Height Centimeter | 19.69 |
| Weight Kilogram | 40.82 |
| Cooktop Features | Continuous Grate, LP Convertible, Wi-Fi Capable, Simmer Element |
| Cooktop Surface Style | Grate |
